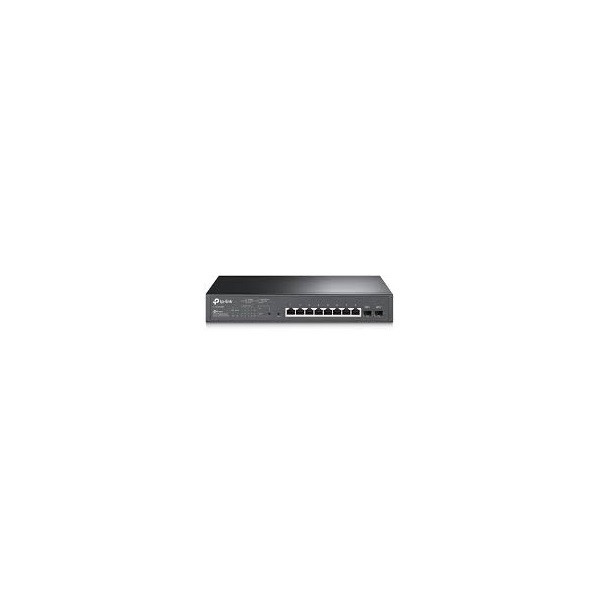

TPLINK TL-SG2210MP Switch 8x1000Mbps (8xPOE+) + 2xSFP, Menedzselhető, TL-SG2210MP

Szabványokésprotokollo:EEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1q, IEEE802.1x, IEEE802.1p
Csatlakozások
• 8× 10/100/1000MbpsRJ45Ports, allsupportingPoE+(Auto-Negotiation/AutoMDI/MDIX)
• 2× 100/1000MbpsSFPSlots
Hálózatiösszeköttetés
• 10BASE-T:UTP/STPcategory3, 4, 5cable(maximum100m)
• 100BASE-TX/1000Base-T:UTP/STPcategory5, 5eorabovecable(maximum100m)
• 100BASE-FX:MMF, SMF
• 1000BASE-X:MMF, SMF
Ventilátorokszáma
1
Fizikaibiztonságizá:es
PoE+portok(RJ45)
• Standard:802.3at/afcompliant
• PoE+Ports:8Ports
• PowerSupply:150W
Méretek(SzxMéxMa)
11.6x7.1x1.7in(294x180x44mm)
Felszerelé:ackMountable
Max.áramfelvétel
• 12.2W(110V/60HzwithnoPDconnected)
• 173.9W(110V/60Hzwith150WPDconnected)
MaxHeatDissipation
• 41.63BTU/h(withnoPDconnected)
• 539.35BTU/h(with150WPDconnected)
MŰKÖDÉSIJELLEMZŐ:witchingteljesítmény
20Gbps
Csomagtovábbításisebesség
14.9Mpps
Fizikai(MAC)címtábla
8K
Csomagpuffermemória
4.1Mbit
JumboFrame
9KB
SZOFTVERJELLEMZŐ:oS(szolgáltatásminősége)
• 802.1pCoS/DSCPpriority
• 8priorityqueues
• PriorityScheduleMode
-SP(StrictPriority)
-WRR(WeightedRoundRobin)
• QueueWeightConfig
• BandwidthControl
-Port/FlowbasedRatingLimit
• SmootherPerformance
• Actionsforflows
-Mirror(tosupportedinterface)
-Redirect(tosupportedinterface)
-RateLimit
-QoSRemark
• StormControl
-MultipleControlModes(kbps/ratio/pps)
-Broadcast/Multicast/Unknown-UnicastControl
L2ésL2+jellemzők
• DHCPRelay
-DHCPVLANRelay
• DHCPL2Relay
• LinkAggregation
-Staticlinkaggregation
-802.3adLACP
-Upto8aggregationgroupsandupto8port:ergroup
• SpanningTreeProtocol
-802.1DSTP
-802.1wRSTP
-802.1sMSTP
-STPSecurity:TCProtect, BPDUFilter/Protect,
RootProtect
• LoopbackDetection
• FlowControl
-802.3xFlowControl
• Mirroring
-PortMirroring
-CPUMirroring
-One-to-One
-Many-to-One
-Flow-Based
-Ingress/Egress/Both
• DeviceLinkDetectProtocol(DLDP)
• 802.1abLLDP/LLDP-MED
L2jellemzők
• LinkAggregation
-staticlinkaggregation
-Upto8aggregationgroupsandupto8portspergroup
-802.3adLACP
• SpanningTreeProtocol
-802.1DSTP
-802.1wRSTP
-802.1sMSTP
-STPSecurity:Loopbackdetection, TCProtect, BPDUFilter/Protect, RootProtect
• LoopbackDetection
• FlowControl
-802.3xFlowControl
• Mirroring
-PortMirroring
-One-to-One
-Many-to-One
-Flow-Based
-Ingress/Egress/Both
-CPUMirroring
• DeviceLinkDetectProtocol(DLDP)
L2Multicast
• 512IPv4, IPv6sharedmulticastgroups
• IGMPSnooping
-IGMPv1/v2/v3Snooping
-FastLeave
-IGMPSnoopingQuerier
-IGMPAuthentication
-StaticGroupConfig
• MLDSnooping
-MLDv1/v2Snooping
-FastLeave
-MLDSnoopingQuerier
-StaticGroupConfig
• MulticastVLANRegistration
• MulticastFiltering
IPv6Support
• IPv6DualIPv4/IPv6
• MulticastListenerDiscovery(MLD)Snooping
• IPv6neighbordiscovery(ND)
• Pathmaximumtransmissionunit(MTU)discovery
• InternetControlMessageProtocol(ICMP)version6
• TCPv6/UDPv6
• IPv6applications
-DHCPv6Client
-Ping6
-Tracert6
-Telnet(v6)
-IPv6SNMP
-IPv6SSH
-IPv6SSL
-Http/Https
-IPv6TFTP
VLAN
• VLANGroup
-Max.4KVLANGroups
• 802.1QtagVLAN
• MACVLAN
• ProtocolVLAN
• GVRP
• VoiceVLAN
Hozzáférés-jogosultságilista(ACL)
• Supportupto230entries
• Time-Range
-TimeSlice
-WeekTime-Range
-AbsoluteTime-Range
-Holiday
• Time-basedACL
• MACACL
-SourceMAC
-DestinationMAC
-VLANID
-UserPriority
-EtherType
• IPACL
-SourceIP
-DestinationIP
-IPProtocol
-TCPFlag
-TCP/UDPSourcePort
-TCP/UDPDestinationPort
-DSCP/IPTOS
• IPv6ACL
• CombinedACL
• RuleOperation
-Permit/Deny
• PolicyAction
-Mirror
-RateLimit
-Redirect
-QoSRemark
• ACLRulesBinding
-PortBinding
-VLANBinding
Biztonság
• AAA
• 802.1X
-Portbasedauthentication
-MAC(Host)basedauthentication
-AuthenticationMethodincludesPAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
-MAB
-GuestVLAN
-SupportRadiusauthenticationandaccountability
• IP/IPv6-MACBinding
-512BindingEntries
-DHCPSnooping
-DHCPv6Snooping
-ARPInspection
-NDDetection
• IPSourceGurad
-253Entries
-SourceIP+SourceMAC
• IPv6SourceGurad
-183Entries
-SourceIPv6Address+SourceMAC
• DoSDefend
• Static/Dynamic/PermanentPortSecurity
-Upto64MACaddressesperport
• Broadcast/Multicast/UnicastStormControl
-kbps/ratio/ppscontrolmode
• PortIsolation
• SecurewebmanagementthroughHTTPSwithSSLv3/TLS1.2
• SecureCommandLineInterface(CLI)managementwithSSHv1/SSHv2
• IP/Port/MACbasedaccesscontrol
MIBs
• MIBII(RFC1213)
• InterfaceMIB(RFC2233)
• EthernetInterfaceMIB(RFC1643)
• BridgeMIB(RFC1493)
• P/Q-BridgeMIB(RFC2674)
• RMONMIB(RFC2819)
• RMON2MIB(RFC2021)
• RadiusAccountingClientMIB(RFC2620)
• RadiusAuthenticationClientMIB(RFC2618)
• RemotePing, TracerouteMIB(RFC2925)
• SupportTP-LinkprivateMIBs
VEZÉRLÉ:madaAp:es
CentralizedManagement
• OmadaCloud-BasedController
• OmadaHardwareController(OC300)
• OmadaHardwareController(OC200)
• OmadaSoftwareController
CloudAcces:es(ThroughOC300, OC200, OmadaCloud-BasedController, orOmadaSoftwareController)
ManagementFeatures
• Web-basedGUIandCLImanagement
• SNMPv1/v2c/v3
• SNMPTrap/Inform
• RMON(1, 2, 3, 9groups)
• SDMTemplate
• DHCP/BOOTPClient
• DualImage, DualConfiguration
• CPUMonitoring
• CableDiagnostics
• EEE
• SystemLog
• 802.1abLLDP/LLDP-MED
EGYÉBJELLEMZŐ:anúsítványo:E, FCC, RoHS
Csomagolástartalma
• TL-SG2210MP
• PowerCord
• InstallationGuide
• RackmountKit
• RubberFeet
Rendszerkövetelmén:icrosoft®, Windows®, 98SE, NT, 2000, XP, Vista&trade, orWindows7/8/10, MAC®, OS, NetWare®, , UNIX®, orLinux.
Környezet
• OperatingTemperature:0&ndash, 40?(32&ndash, 104?),
• StorageTemperature:-40&ndash, 70?(-40&ndash, 158?)
• OperatingHumidity:10&ndash, 90%RHnon-condensing
• StorageHumidity:5&ndash, 90%RHnon-condensing
